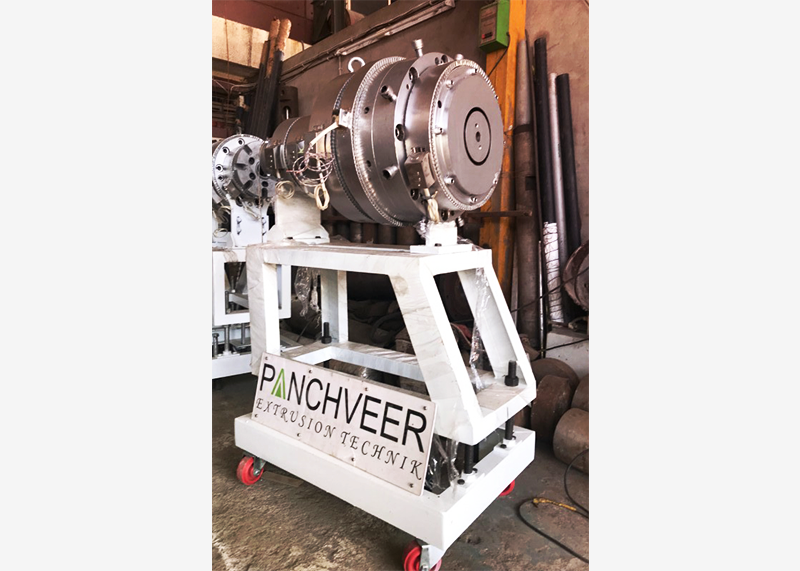

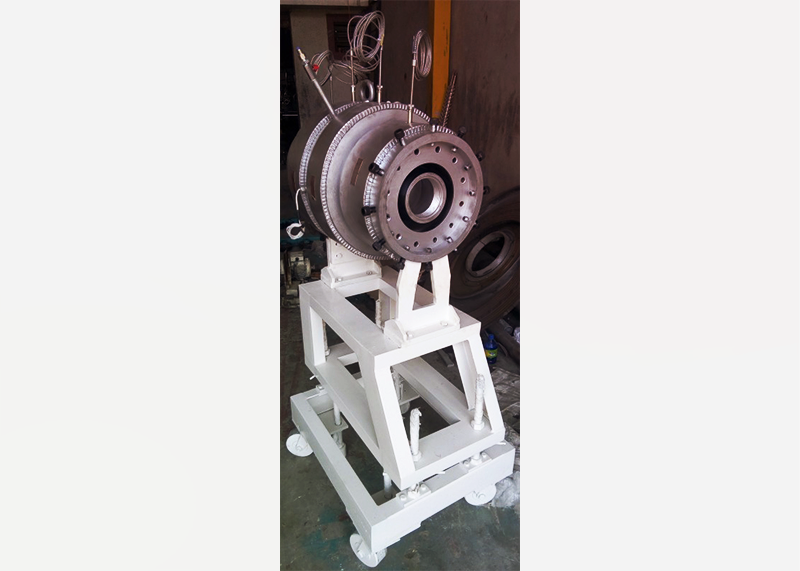

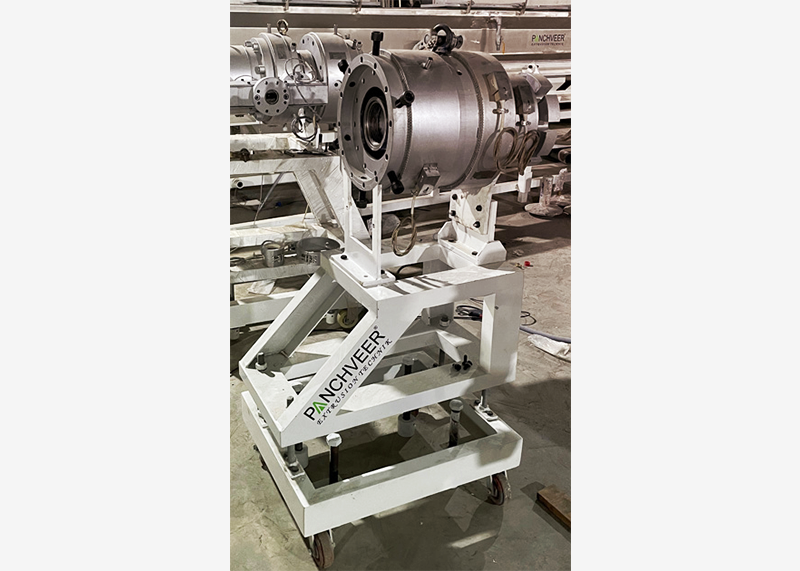

PVC Pipe Die Head, RPVC, UPVC, CPVC, OPVC

Inquiry Now

Die Head For macking PVC Pipe (RPVC die , UPVC die , CPVC die )

3 LAYER PVC PIPE DIE HEAD AVAILABLE

Features :

  • Accommodate a large range of pipe die in single die head ensuring less change over time & saving cost.
  • Geometric design of the dia offer distinct advantage during process.
  • Optimum flow properties over the entire flow channel facilities high output.

PVC PIPE DIE HEAD MODEL

Models 75 - 250 110 - 250 200 - 400 250 - 600 250 - 700 315 - 800 400 - 800 450-1000
Pipe Size Range (MM) 16 - 75 20 - 110 50 - 200 63 - 250 75 - 250 110 - 315 110 - 400 160-450
Throughput (KG/HR) 250 250 400 600 700 800 800 1000

DUAL PVC PIPE DIE HEAD MODEL

Models 2-50/100 2-75/250 2-110/250 2-200/400 2-250/600
Pipe Size Range (MM) 16-50 20-75 20-110 63-110 63-200
Throughput (KG/HR) 200 500 500 800 1200

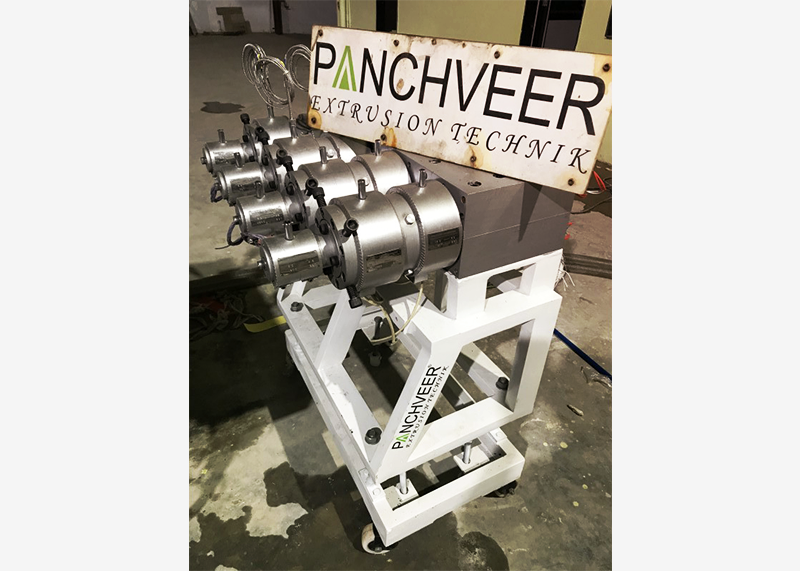

4 WAY PVC CONDUIT DIE HEAD / C PVC PIPE DIE HEAD

Models 4-50/350 RKL-1/200 RKL-2/400 RKL-3/600
Pipe Size Range (MM) 16-40 1/2" to 2" 2" to 4" 2" to 6"
Throughput (KG/HR) 350 200 400 600
